38 x 42.4 mm Multi-colour coaxial light, RGB series (LS-COS40-RGBS-M)
Red
$109.00
Pomiń, aby przejść do informacji o produkcie
38 x 42.4 mm Multi-colour coaxial light, RGB series (LS-COS40-RGBS-M)
$109.00
High-density, high-brightness multi-colour (RGB) light; colour combinations highlight 3D information of objects and each lighting group can be controlled independently, so monochrome can also be chosen.
Features
- High density LED, high brightness
- Different colour combinations highlight 3D information of objects
- Each group of lighting area can be controlled independently; monochrome can be chosen to suit different sizes of measured objects
- Optional multi-colour, easy to use for multi-colour applications
Applications
- Edge extraction of various colours
- Appearance inspection of various colours
- QR code and barcode reading
- Wiper surface defect inspection
- Inspection of multi-colour products
Specifications
| Model | LS-COS40-RGBS-M |
|---|---|
| Storage temperature | -20-60 °C |
| Operating temperature | 0-40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Service life | At 25 °C ambient: red works continuously for 60000 hours at 50% illumination, white 30000 hours at 50% illumination (decrement at 50%) |
| Optional accessories | Extension cable |
| Controller | LS-DPS / LS-APS / LS-SPS series (match the power of the light source) |
| Power (W) | 5.1 |
| Luminous dimension (mm) | 38 x 42.4 |

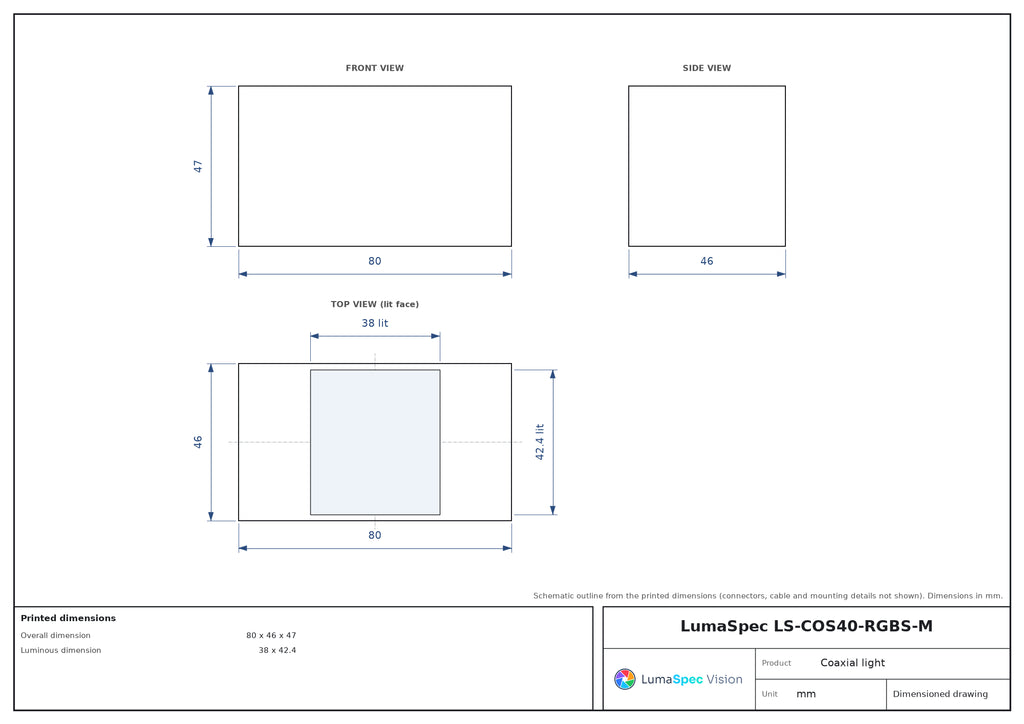

| Overall dimension (mm) | 80 x 46 x 47 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-DPS, LS-APS |
