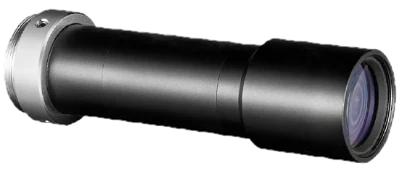

Object-Side Telecentric Lens, 0.6x, 158 mm WD, 2/3" (LS-MY-06-158)
$869.00
Object-Side Telecentric Lens, 0.6x, 158 mm WD, 2/3". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 2/3"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 2/3"
Specifications
| Model | LS-MY-06-158 |
|---|---|
| Magnification | 0.6 |
| Working distance | 158 mm |
| F-number | F16.2 |
| Image size | Φ11 mm |
| Depth of field | 3.6 mm |
| Distortion | ≤0.3% |
| Object-side resolution | 17.8 μm |
| Object-side telecentricity | ≤0.27° |
| Connector type | C-Mount |
| Coaxial light | Not supported |

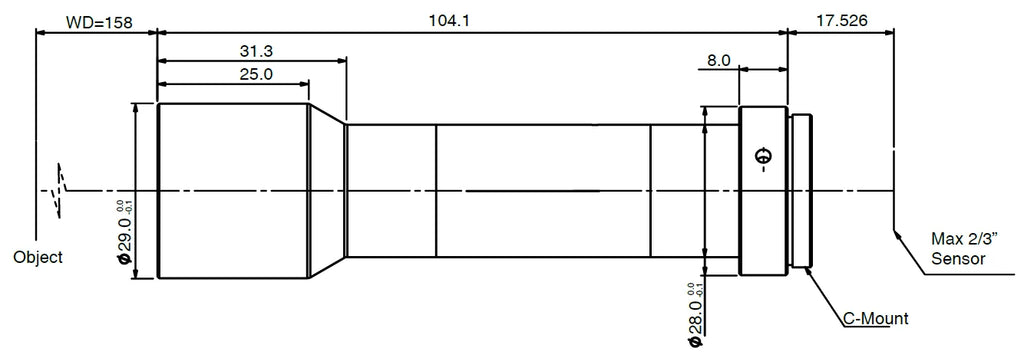

| Dimension | 104.1 mm × Φ29 mm |
| Temperature | -10 ~ 50 °C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
