High precision coaxial light, 41 x 30 x 24 mm (LS-3COX18-CP)
$109.00
Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision. More suitable for tiny object inspection. Compact structure, suitable for limited space environment.
Features
- Adopt high precision cube spectrometer to instead of plate spectrometer, high inspection precision
- More suitable for tiny object inspection
- Compact structure, suitable for limited space environment
Applications
- The damage inspection of the chip, wafer
- The scratch of reflective surface
- Bar code, QR code recognition
- Printing, silk-screen inspection
Specifications
| Model | LS-3COX18-CP |
|---|---|
| Note | UV & IR light can be customized as required. |
| Voltage | 24V |
| Dimension | L41xW30xH24(mm) |
| Power | 1.5W/1.5W |
| Remark | Prism |
| LED colour | R(red)/W(white) |
| Input voltage | DC 24V (max) |
| Cable polarity | 1: +, 2: NC, 3: - |
| Emitting surface (mm) | 18 x 18 |
| Mounting holes | 4-M3 depth 6 |

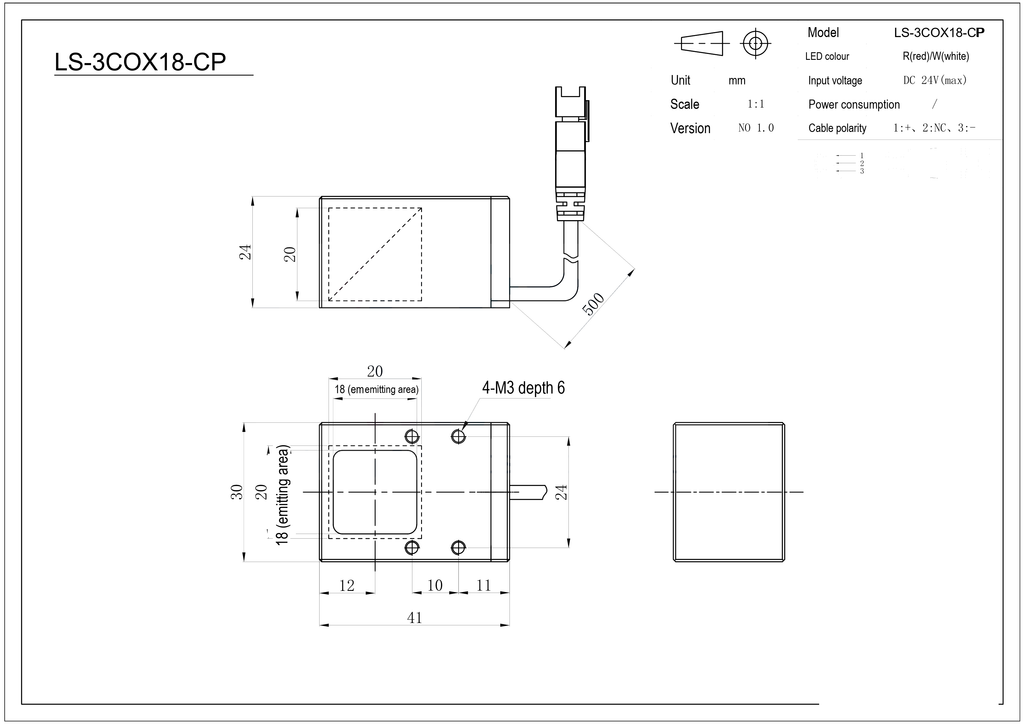

| Cable (mm) | 500 (drawing) |
