Telecentric collimated light, Ø150 mm (LS-TL150)
$1,079.00
Telecentric parallel light source with high uniform parallel light output and low distortion imaging, for industrial and scientific fields with high requirements on imaging quality and measurement accuracy.
Features
- High uniform parallel light output
- Low distortion imaging
- Compact structure design
- Anti reflection interference
- Customization: three colour RGB light, dimensions (length/width/height), power cable length and interface, control mode (manual / remote / equipment linkage), installation (screw fixation / buckle installation)
- Outside diameter: dia. 150mm.
- Product shell made of aviation aluminum alloy material.
- Default 3PIN2 power interface, optional round head and 2PIN2 interface.
- Suitable for high-precision measurement and defect detection scenarios,etc.
Applications
- Industrial and scientific fields with high requirements on imaging quality and measurement accuracy
- Use as telecentric back light opposite a telecentric lens
Specifications
| Model | LS-TL150 |
|---|---|
| LED type | SMD |
| Interface (default) | 3PIN2 power interface |
| Power tolerance | actual product power within ±10% of the table is the normal range |

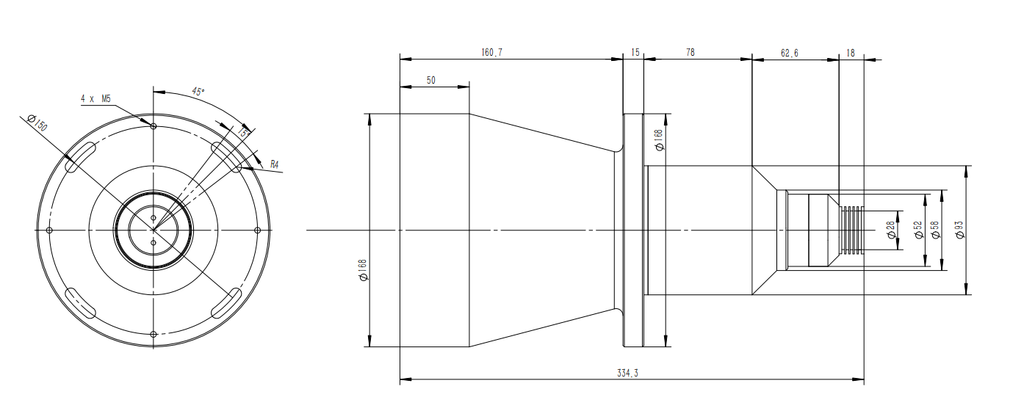

| Outside diameter (mm) | dia. 150 |
| Color | Red/Blue/White/Green |
| Category | Telecentric Collimated Light |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 6000-6500K; blue: —; green: — |
| Cable length | 0.5m |
| Terminal Plug | Flat head 3PIN2 pin |
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Shell material | Aluminum alloy |
| Cooling | Naturalair cooling |
| Outside Diameter | 150MM |
| Lamp Luminous Efficiency(lm/w) | 110 |
| Color Rendering Index(Ra) | 85 |
| Color Temperature(CCT) | 6000K (Daylight Alert) |
| Flammability Rating | IEC60707 |
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
| Lifespan | Under our specified conditions of use,30000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
| Value-added Services | One year free technical support |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |
| Power (W) | 3 |
| Voltage (V) | 5 |
