0.084x, WD 288 mm, 2/3", C-mount Telecentric Lens (LS-SDM136)
$2,889.00
0.084x, WD 288 mm, 2/3", C-mount Telecentric Lens. At a glance: magnification 0.084x; working distance 288±5 mm; max sensor size 11.4 mm (2/3"); object field of view 136 mm; image-side f/# 4.9.
Specifications
| Model | LS-SDM136 |
|---|---|
| Object field of view (dia. mm) | 136 |
| Magnification (x) | 0.084 |
| Working distance (mm) | 288±5 |
| Max sensor size (dia. mm) | 11.4(2/3") |
| Image-side F/# | 4.9 |
| Image-side MTF30 (lp/mm) | >185 |
| Theoretical depth of field (mm) | ±62.4@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 659±5 |

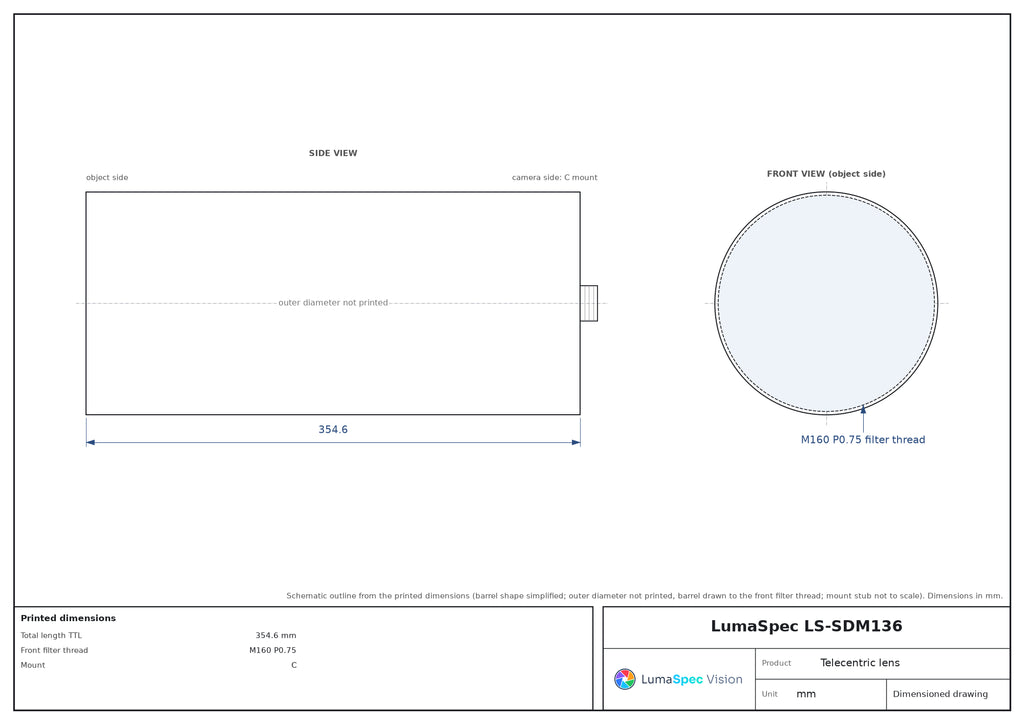

| Total length TTL (mm) | 354.6 |
| Mount | C |
| Net weight (kg) | 4.25 |
| Front filter thread | M160 P0.75 |
| Measured depth of field as shipped (mm) | 15 |
| Shipping weight (estimated) | 6.05 kg |
Photo shows a representative model of this series; see the specifications for this model.
