0.0978x, WD 350 mm, 1/1.8", C-mount Telecentric Lens (LS-S18DM92)
$2,129.00
Passa alle informazioni sul prodotto
0.0978x, WD 350 mm, 1/1.8", C-mount Telecentric Lens (LS-S18DM92)
$2,129.00
0.0978x, WD 350 mm, 1/1.8", C-mount Telecentric Lens. At a glance: magnification 0.0978x; working distance 350±6 mm; max sensor size 9.0 mm (1/1.8"); object field of view 92 mm; image-side f/# 4.6.
Specifications
| Model | LS-S18DM92 |
|---|---|
| Object field of view (dia. mm) | 92 |
| Magnification (x) | 0.0978 |
| Working distance (mm) | 350±6 |
| Max sensor size (dia. mm) | 9.0(1/1.8") |
| Image-side F/# | 4.6 |
| Image-side MTF30 (lp/mm) | >178 |
| Theoretical depth of field (mm) | ±46@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 617±6 |

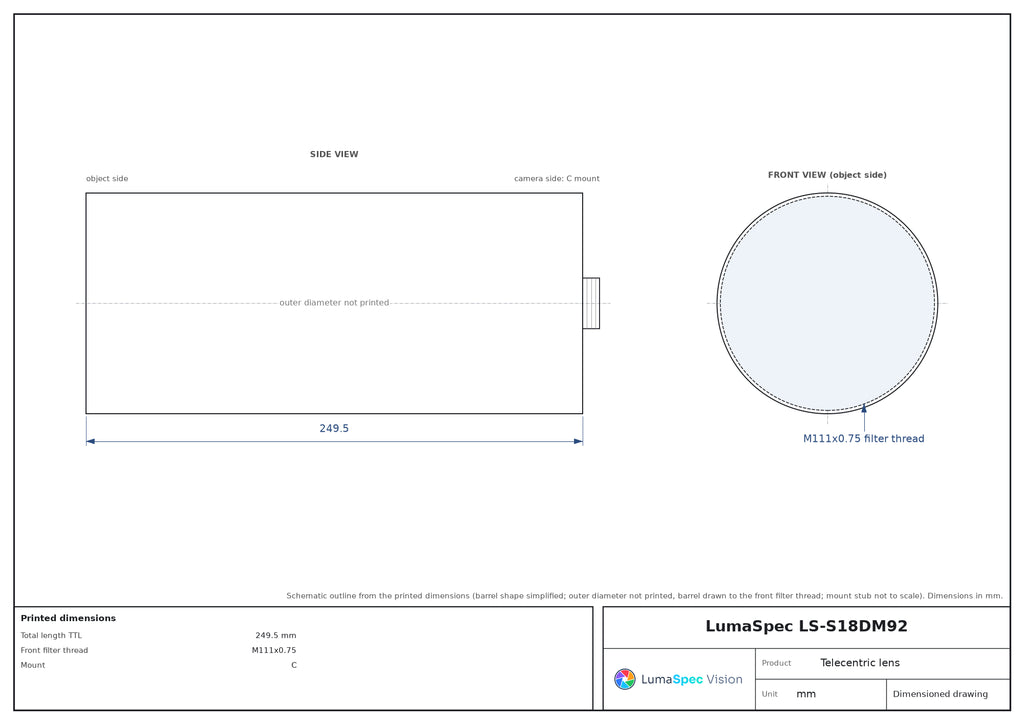

| Total length TTL (mm) | 249.5 |
| Mount | C |
| Front filter thread | M111x0.75 |
| Shipping weight (estimated) | 1.61 kg |
Photo shows a representative model of this series; see the specifications for this model.
