0.097x, WD 330 mm, 1.1", C-mount Telecentric Lens (LS-S11DM190H)
$3,819.00
0.097x, WD 330 mm, 1.1", C-mount Telecentric Lens. At a glance: magnification 0.097x; working distance 330±5 mm; max sensor size 18.4 mm (1.1"); object field of view 190 mm; image-side f/# 6.2.
Specifications
| Model | LS-S11DM190H |
|---|---|
| Object field of view (dia. mm) | 190 |
| Magnification (x) | 0.097 |
| Working distance (mm) | 330±5 |
| Max sensor size (dia. mm) | 18.4(1.1") |
| Image-side F/# | 6.2 |
| Image-side MTF30 (lp/mm) | >150 |
| Theoretical depth of field (mm) | ±46.7@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 791±5 |

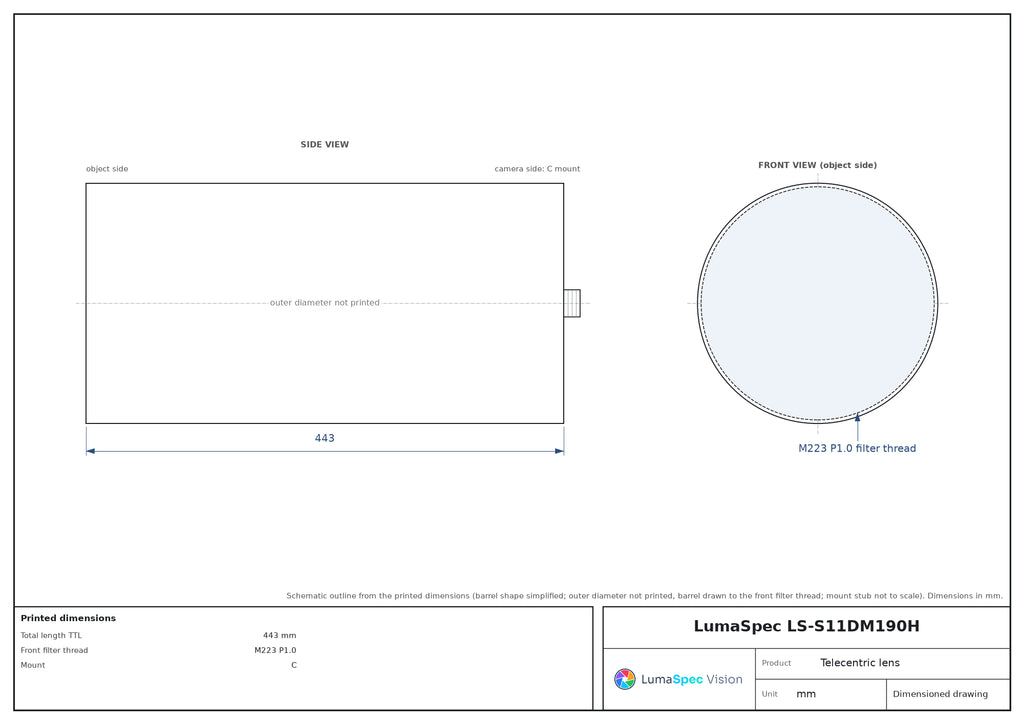

| Total length TTL (mm) | 443 |
| Mount | C |
| Net weight (kg) | 9.65 |
| Front filter thread | M223 P1.0 |
| Shipping weight (estimated) | 13.61 kg |
Photo shows a representative model of this series; see the specifications for this model.
