0.067x, WD 273 mm, 1/2", C-mount Telecentric Lens (LS-S12DM120H)
$2,609.00
0.067x, WD 273 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 0.067x; working distance 273±5 mm; max sensor size 8.0 mm (1/2"); object field of view 120 mm; image-side f/# 4.2.
Specifications
| Model | LS-S12DM120H |
|---|---|
| Object field of view (dia. mm) | 120 |
| Magnification (x) | 0.067 |
| Working distance (mm) | 273±5 |
| Max sensor size (dia. mm) | 8.0(1/2") |
| Image-side F/# | 4.2 |
| Image-side MTF30 (lp/mm) | >210 |
| Theoretical depth of field (mm) | ±99@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 561±5 |

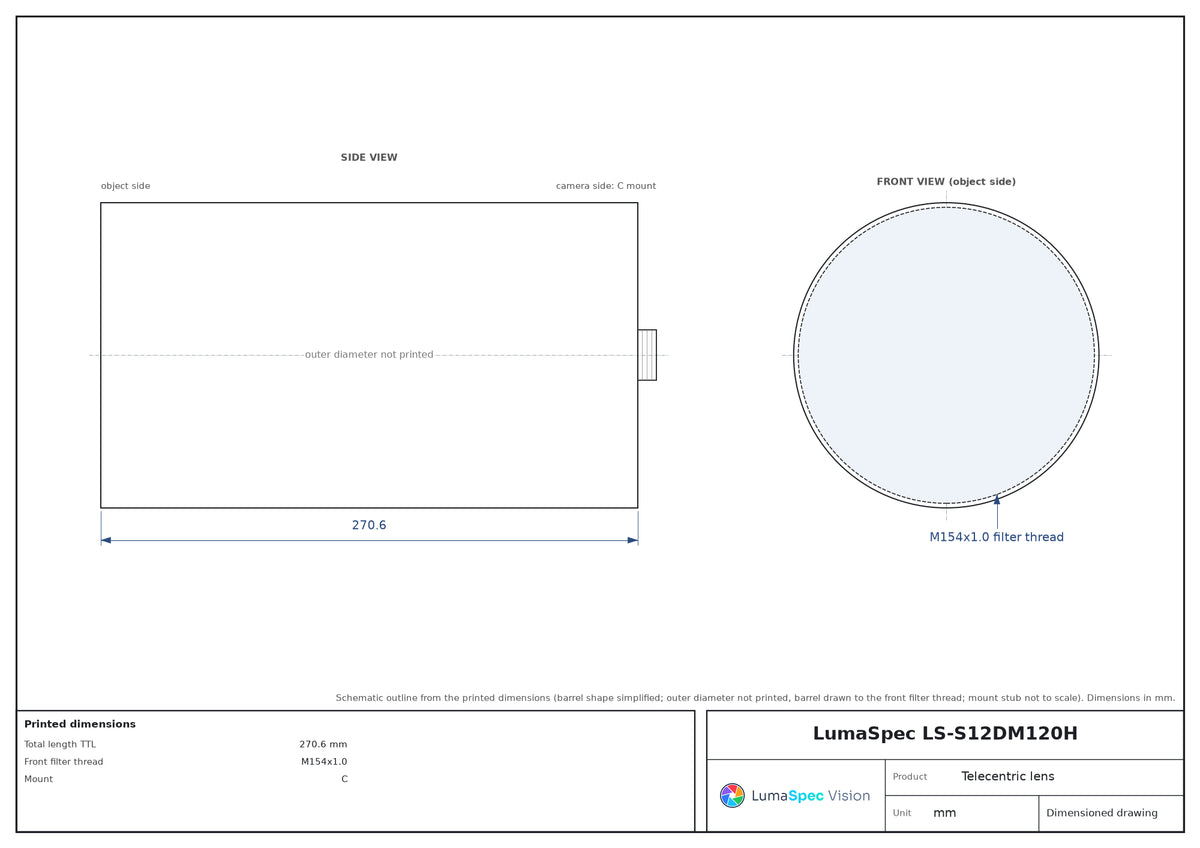

| Total length TTL (mm) | 270.6 |
| Mount | C |
| Net weight (kg) | 4.1 |
| Front filter thread | M154x1.0 |
| Measured depth of field as shipped (mm) | 11 |
| Shipping weight (estimated) | 5.84 kg |
Photo shows a representative model of this series; see the specifications for this model.
