0.073x, WD 263 mm, 1/2", C-mount Telecentric Lens (LS-S12DM110)
$2,439.00
Kihagyás, és ugrás a termékadatokra
0.073x, WD 263 mm, 1/2", C-mount Telecentric Lens (LS-S12DM110)
$2,439.00
0.073x, WD 263 mm, 1/2", C-mount Telecentric Lens. At a glance: magnification 0.073x; working distance 263±4 mm; max sensor size 8.0 mm (1/2"); object field of view 110 mm; image-side f/# 4.2.
Specifications
| Model | LS-S12DM110 |
|---|---|
| Object field of view (dia. mm) | 110 |
| Magnification (x) | 0.073 |
| Working distance (mm) | 263±4 |
| Max sensor size (dia. mm) | 8.0(1/2") |
| Image-side F/# | 4.2 |
| Image-side MTF30 (lp/mm) | >210 |
| Theoretical depth of field (mm) | ±82.6@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 539±4 |
| Total length TTL (mm) | 258.8 |
| Mount | C |
| Net weight (kg) | 2.6 |
| Front filter thread | M134 P0.75 |
| Shipping weight (estimated) | 3.74 kg |

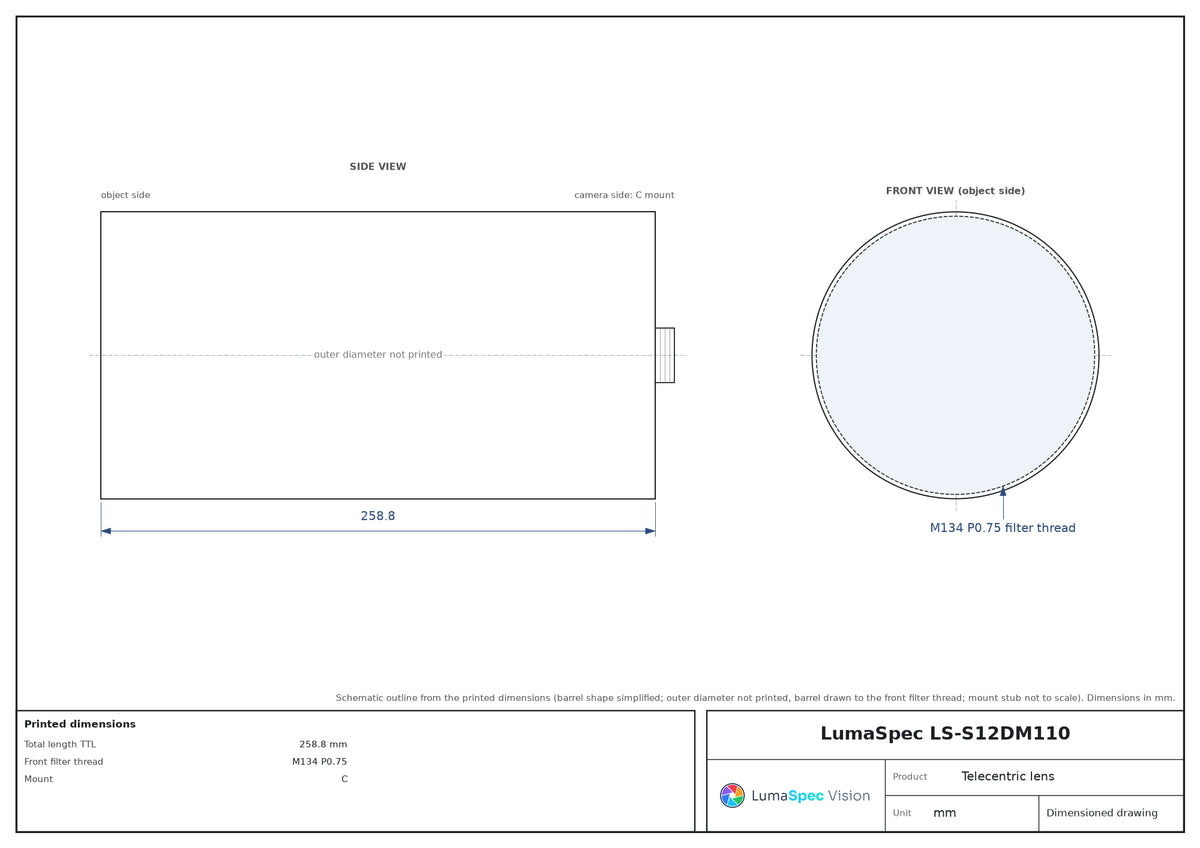

Photo shows a representative model of this series; see the specifications for this model.
