0.06x, WD 273 mm, 1/2.5", C-mount Telecentric Lens (LS-S125DM120H)
$2,609.00
0.06x, WD 273 mm, 1/2.5", C-mount Telecentric Lens. At a glance: magnification 0.06x; working distance 273±5 mm; max sensor size 7.2 mm (1/2.5"); object field of view 120 mm; image-side f/# 4.9.
Specifications
| Model | LS-S125DM120H |
|---|---|
| Object field of view (dia. mm) | 120 |
| Magnification (x) | 0.06 |
| Working distance (mm) | 273±5 |
| Max sensor size (dia. mm) | 7.2(1/2.5") |
| Image-side F/# | 4.9 |
| Image-side MTF30 (lp/mm) | >210 |
| Theoretical depth of field (mm) | ±122@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 557±5 |

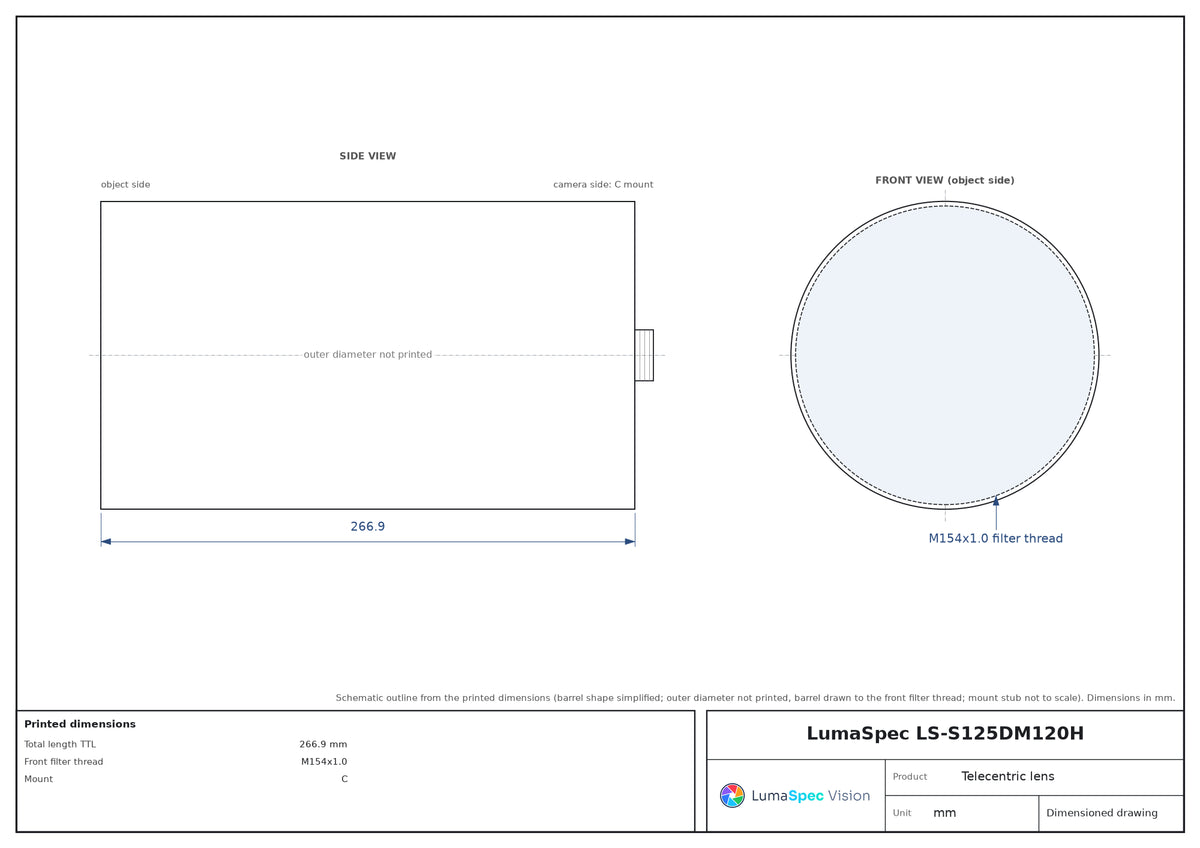

| Total length TTL (mm) | 266.9 |
| Mount | C |
| Net weight (kg) | 4.17 |
| Front filter thread | M154x1.0 |
| Shipping weight (estimated) | 5.94 kg |
Photo shows a representative model of this series; see the specifications for this model.
