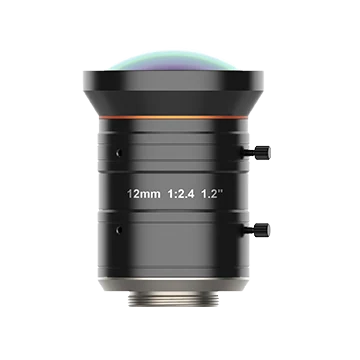

Fixed focal length, Manual iris, 25 MP, FA lens (LS-XAC-1225F)
$239.00
Fixed focal length, Manual iris, 25 MP, FA lens. Ultra-high resolution with highly uniform image sharpness 1.2" large format, large aperture, low distortion, high relative illumination
Features
- Ultra-high resolution with highly uniform image sharpness
- 1.2" large format, large aperture, low distortion, high relative illumination
- Achromatic design for better imaging with color cameras
- Excellent optical performance at all object distances
- Excellent vibration and shock resistance and stability at high and low temperatures
- Multi-layer broadband coating for both visible and near-infrared applications
Specifications
| Model | LS-XAC-1225F |
|---|---|
| Focal length | 12 mm |
| F-number | F2.4 ~ F16 |
| Image size | Φ19.3 mm(1.2") |
| Distortion | 0.39% |
| Minimum object distance | 0.1 m |
| Field of view | D(19.30mm):76.37°; H(14.60mm):62.32°; V(12.63mm):55.34° |
| Iris control | Manual |
| Focus control | Manual |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |

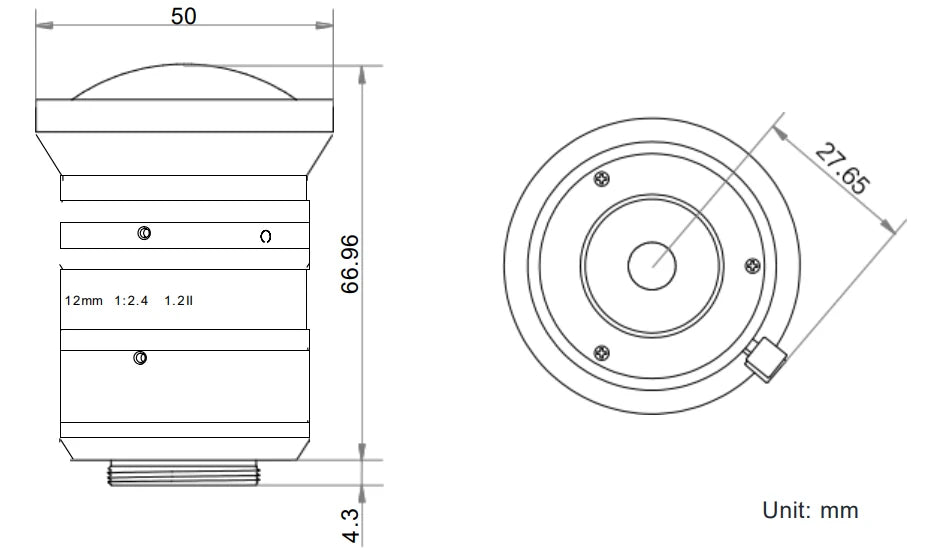

| Dimension | Φ50×66.96 mm |
| Weight | 215 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.40 kg |
