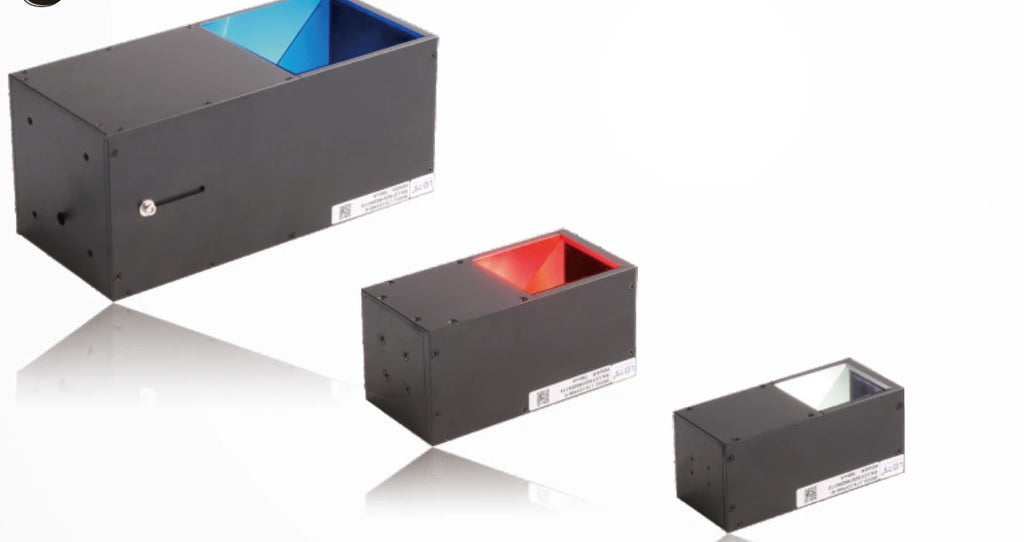

Collimated coaxial light (LS-COPA100)
$759.00
Passer aux informations sur le produit
Collimated coaxial light (LS-COPA100)
$759.00
Coaxial light with a special optical path design for high parallelism, using high-power LEDs for high luminance; the uniform light rays are easy for software to recognize.
Features
- Special optical path design, high parallelism
- High power LED, high luminance
- Uniform light ray, easy to recognize by software
- High power LED used, high luminance
- Uniform light ray, easy to recognized by software
Applications
- Defect inspection of metal surfaces
- Glass inspection
- Scratch inspection of light disks
- Drink bottleneck inspection
- Imaging example: dirty part inspection on a glass plate (LS-COPA40-B)
- The defect inspection of metal surface
- Scratch inspection of light disk
- Chips scratch and dirty part inspection
Specifications
| Model | LS-COPA100 |
|---|---|
| Adapted controller | Constant current controller |
| Light spot (LS-COPA50-W) | WD 25: dia. 50, 16350 lx; WD 100: dia. 52, 9330 lx; WD 200: dia. 55, 6435 lx |
| Customizable | viewport, length and width, colour and colour temperature, cable length, installation method |
| Cable (mm) | 500 (drawings) |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Custom wavelengths | UV & IR light can be customized as required |
| Note | UV & IR light can be customized as required. |

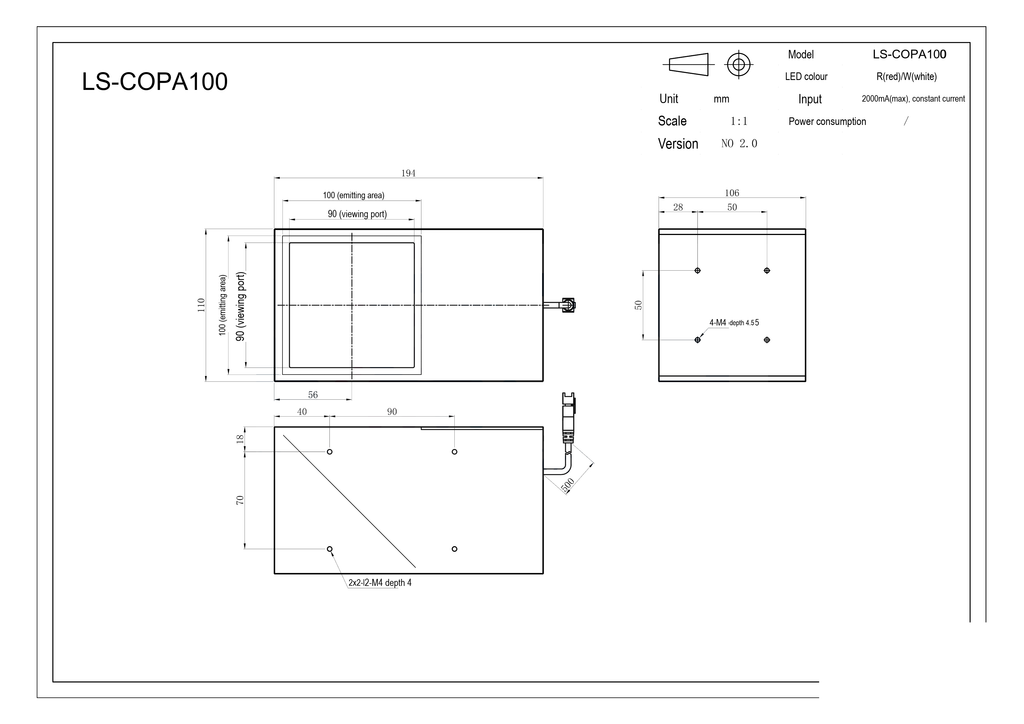

| Dimension | L194xW110xH106(mm) |
| Current | 2000mA |
| Power | 6W |
| LED colour | R(red)/W(white) |
| Emitting surface (mm) | 100 x 100 |
| Viewport (camera hole) | 110 x 90 mm |
| Mounting holes | 4-M4 depth 4.5; 2×2-M4 depth 4 |
| Supply voltage (derived) | 24 V DC, derived: all 58 coaxial lights of this range that state a voltage are rated 24 V |
