0.042x, WD 372 mm, 1/1.8", C-mount Telecentric Lens (LS-S18DM216)
$4,259.00
Ir directamente a la información del producto
0.042x, WD 372 mm, 1/1.8", C-mount Telecentric Lens (LS-S18DM216)
$4,259.00
0.042x, WD 372 mm, 1/1.8", C-mount Telecentric Lens. At a glance: magnification 0.042x; working distance 372±5 mm; max sensor size 9.0 mm (1/1.8"); object field of view 216 mm; image-side f/# 4.6.
Specifications
| Model | LS-S18DM216 |
|---|---|
| Object field of view (dia. mm) | 216 |
| Magnification (x) | 0.042 |
| Working distance (mm) | 372±5 |
| Max sensor size (dia. mm) | 9.0(1/1.8") |
| Image-side F/# | 4.6 |
| Image-side MTF30 (lp/mm) | >200 |
| Theoretical depth of field (mm) | ±249@F11 |
| Image-side distortion (% max) | <0.1 |
| Object-side telecentricity (deg max) | <0.1 |
| Object-to-image distance I/O (mm) | 889±5 |

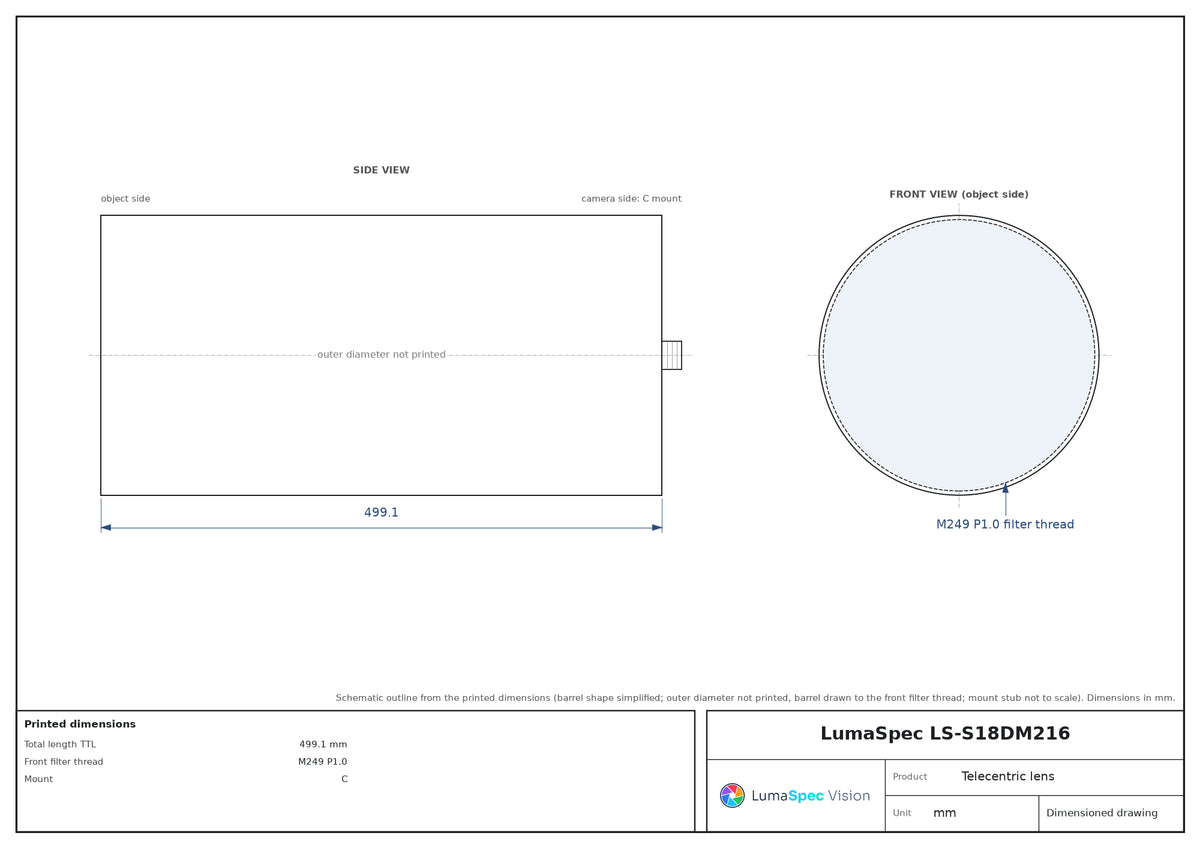

| Total length TTL (mm) | 499.1 |
| Mount | C |
| Net weight (kg) | 13.748 |
| Front filter thread | M249 P1.0 |
| Shipping weight (estimated) | 19.35 kg |
Photo shows a representative model of this series; see the specifications for this model.
