LED dome light, Ø116 mm (LS-NTD-C116X-S)
Blue
$259.00
Ir directamente a la información del producto
LED dome light, Ø116 mm (LS-NTD-C116X-S)
$259.00
Uniform, shadow-free lighting for shiny and curved surfaces: light comes out from the bottom and is reflected 360 degrees inside the sphere so the whole image is uniform.
Features
- Providing uniform and shadows lighting, ideal choice for the shinny and curved surface.
- With sphere structure, lighting comes out from bottom and 360 degree reflective, the whole image result is uniform.
Applications
- Inspection of curved and uneven surfaces
- Highly reflective metal and glass surfaces
Specifications
| Model | LS-NTD-C116X-S |
|---|---|

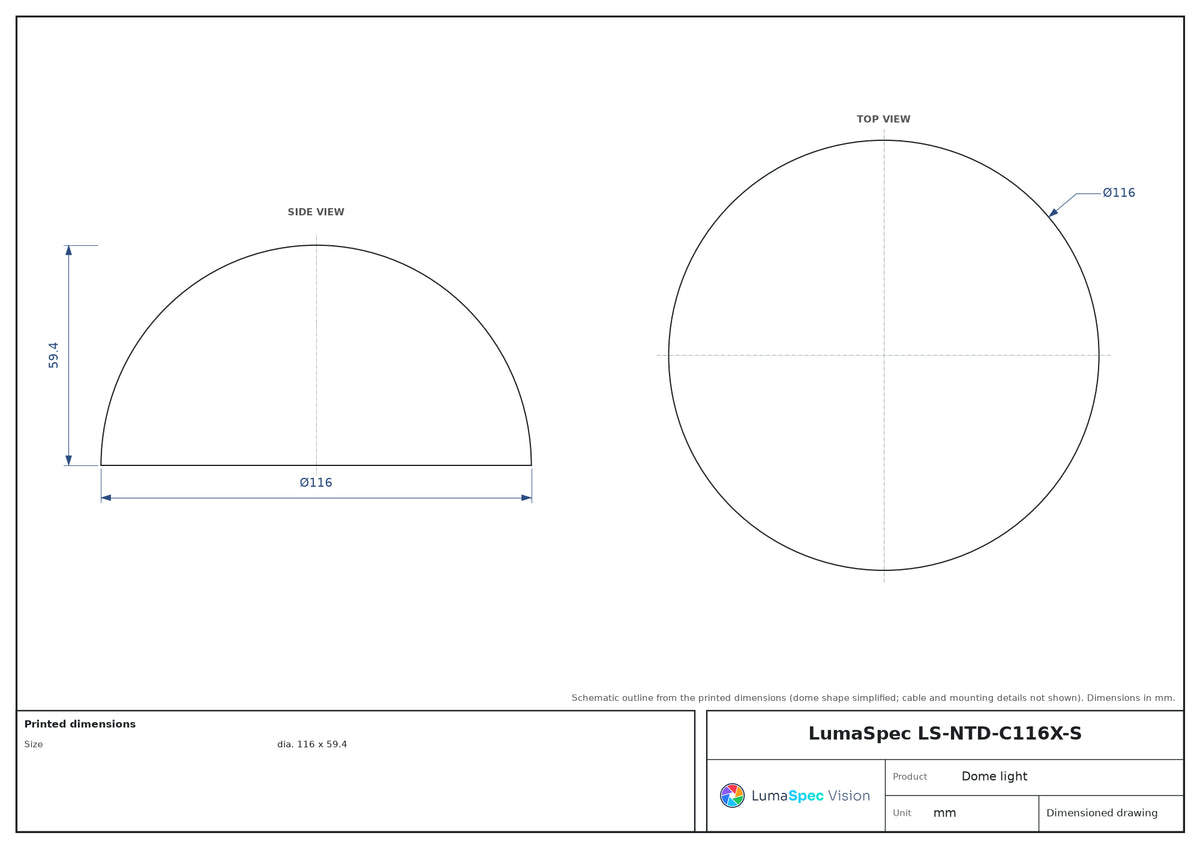

| Size (mm) | dia. 116 x 59.4 |
| Current (max) (Blue) | 0.4A |
| Power (max) (Blue) | 9.7W |
| Color temperature / wavelength (Blue) | 470nm Typ. |
| Current (max) (Red) | 0.29A |
| Power (max) (Red) | 7W |
| Color temperature / wavelength (Red) | 625nm Typ. |
| Current (max) (White) | 0.3A |
| Power (max) (White) | 7.2W |
| Color temperature / wavelength (White) | 6500K Typ. |
| Supply voltage (derived) | 24 V DC, derived from its rated 9.7 W at 0.4 A |
