Tessellated calibration targets, 25 x 25 mm (LS-NRT-025-0.1-G/C)
$39.00
The outline standard dimensions of Tessellated Calibration Targets is 38, 50, 76, 100, 150, 200mm. Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.
Features
- The outline standard dimensions of Tessellated Calibration Targets is 38, 50, 76, 100, 150, 200mm. Its precision can reach +/-0.001mm after testing by the China Institute of Metrology.
- It can be compatible with Zhang Zhengyou basic calibration algorithm and OpenCV calibration algorithm.Suitable used for universities and research institutions.
- Any pattern,any size,quickly and low cost
- Any pattern, any size, quickly and low cost (customization)
Specifications
| Model | LS-NRT-025-0.1-G/C |
|---|---|
| Substrate | Soda Lime Glass |
| Thickness | 2.3mm |
| Overall accuracy | ±1 μm |
| Process | Direct Laser Writing |

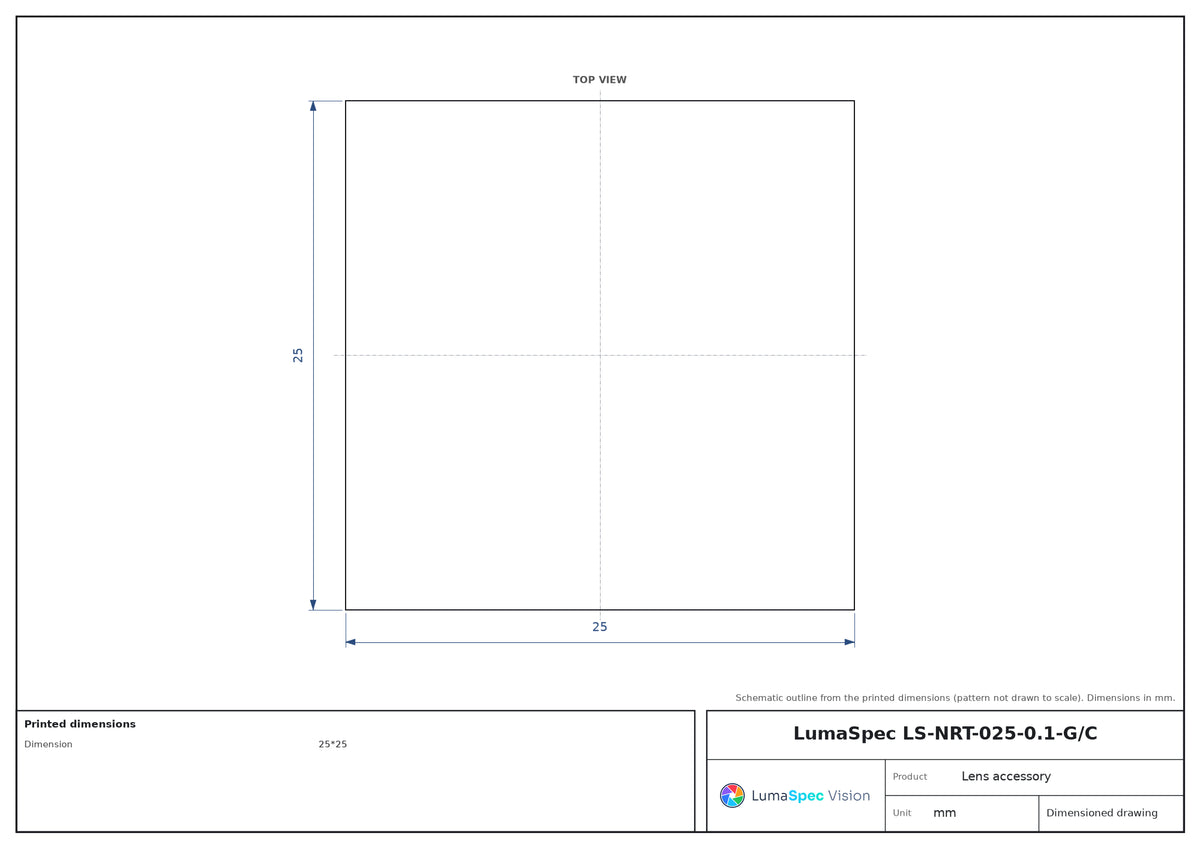

| Dimension (mm) | 25*25 |
| Effective Area(mm) | 16.5 |
| Grid(mm) | 0.1 |
| Grid Array | 165*165 |
| Precision | ±0.001 mm (tested by the China Institute of Metrology) |
| Software compatibility | Zhang Zhengyou basic calibration algorithm, OpenCV calibration algorithm |
