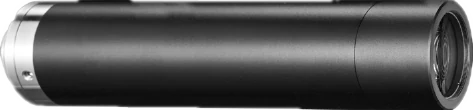

Object-Side Telecentric Lens, 0.5x, 240 mm WD, 1" (LS-KY-05-240)
$799.00
Ir directamente a la información del producto
Object-Side Telecentric Lens, 0.5x, 240 mm WD, 1" (LS-KY-05-240)
$799.00
Object-Side Telecentric Lens, 0.5x, 240 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1"
Specifications
| Model | LS-KY-05-240 |
|---|---|
| Magnification | 0.5 |
| Working distance | 240 mm |
| Image size | 1" |
| F-number | F12.5 |
| Depth of field | 4 mm |
| Distortion | ≤ 0.1% |
| Object-side resolution | 16.7 μm |
| Object-side telecentricity | Non-telecentric |
| Connector type | C-Mount |
| Coaxial light | Not supported |

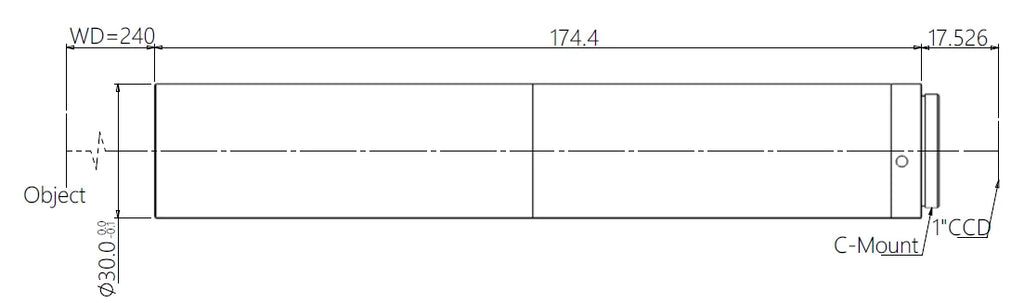

| Dimension | 174.4 mm × Φ30 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
