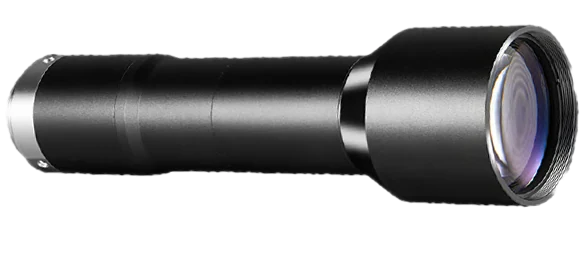

Object-Side Telecentric Lens, 0.66x, 110 mm WD, 1" (LS-KT-066-110)
$969.00
Ir directamente a la información del producto
Object-Side Telecentric Lens, 0.66x, 110 mm WD, 1" (LS-KT-066-110)
$969.00
Object-Side Telecentric Lens, 0.66x, 110 mm WD, 1". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1"
Specifications
| Model | LS-KT-066-110 |
|---|---|
| Magnification | 0.66 |
| Working distance | 110 mm |
| Image size | 1" |
| F-number | F7 |
| Depth of field | ±0.6 mm @F7 |
| Distortion | ≤ 0.02% |
| Object-side resolution | 5.6 μm |
| Object-side telecentricity | ≤ 0.01° |
| Connector type | C-Mount |
| Coaxial light | Not supported |

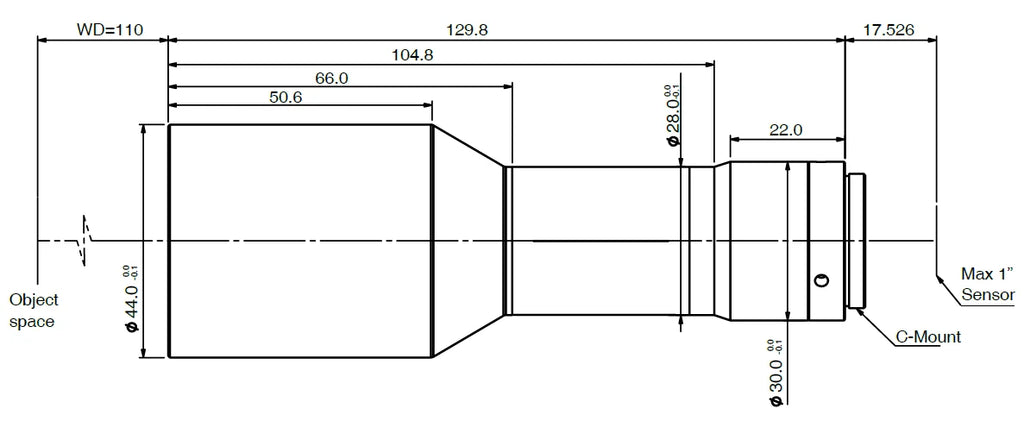

| Dimension | 129.8 mm × Φ44 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
