Quasi-Telecentric Lens, 0.5x, 316 mm WD, 1.2" (LS-KS-05-316)
$829.00
Ir directamente a la información del producto
Quasi-Telecentric Lens, 0.5x, 316 mm WD, 1.2" (LS-KS-05-316)
$829.00

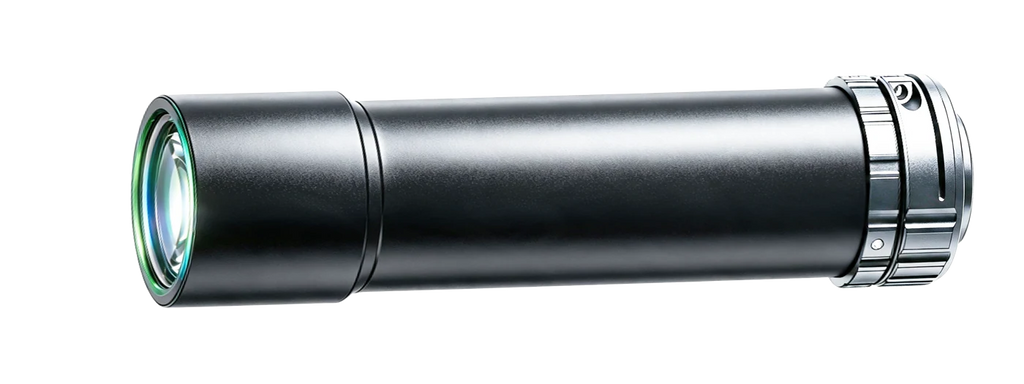

Object-Side Telecentric Lens, 0.5x, 316 mm WD, 1.2". Excellent image quality with an optimized fixed-magnification design Supports cameras up to 1.2"
Features
- Excellent image quality with an optimized fixed-magnification design
- Supports cameras up to 1.2"
Specifications
| Model | LS-KS-05-316 |
|---|---|
| Magnification | 0.5 |
| Working distance | 316 mm |
| Image size | 1.2" |
| F-number | F12 |
| Depth of field | 3.8 mm |
| Distortion | ≤ 0.01% |
| Object-side resolution | 16.1 μm |
| Object-side telecentricity | Non-telecentric |
| Connector type | C-Mount |
| Coaxial light | Not supported |

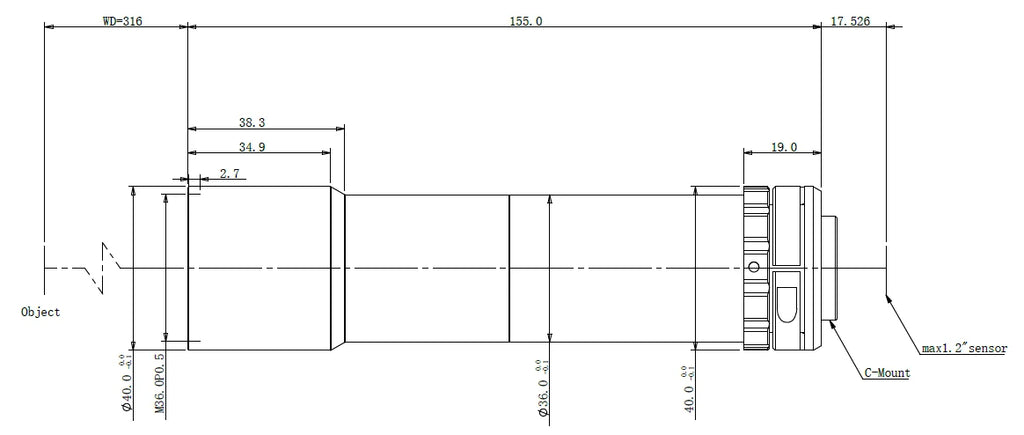

| Dimension | 155 mm × Φ 40 mm |
| Temperature | -10~50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.66 kg |
