26 mm Dome light source (LS-DS44)
$99.00
Diffuse light comes from a dome-shaped reflector, giving diffuse-reflection shadowless lighting suitable for undulating surfaces and reflective objects.
Features
- Diffuse light comes from dome shaped reflector
- Diffuse reflection shadowless light source
- Suitable for undulating surfaces and reflective objects
Applications
- Curved surface defect inspection
- Surface defect inspection
- Inspection of concave and convex surface defects
- Inspection of arc surface defects
- Metal, glass and other reflective objects surface inspection
- Character recognition of electrical appliance appearance
- Hardware parts edge extraction
- Line colour differentiation
- Wheel hub appearance inspection
Specifications
| Model | LS-DS44 |
|---|---|
| Wavelength red | 620-630 nm |
| Wavelength green | 520-530 nm |
| Wavelength blue | 465-475 nm |
| Colour temperature white | 6000-6500 K |
| Wavelength IR | 850-940 nm |
| Wavelength UV | 365-405 nm |
| Storage temperature | -20 to 60 °C |
| Operating temperature | 0 to 40 °C |
| Humidity | 20-85 %RH (non-condensing) |
| Optional accessories | Extension cable |
| Controller | LS-DPS series, LS-APS series, LS-SPS series, LS-HAPS series (the selected controller should match the power of the light source) |
| Service life (red) | 60000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Service life (white) | 30000 h continuous at 25 °C, 50% illumination, to 50% decrement |
| Illuminance chart reference | LS-DS116-W; uniformity LS-DS175-W, FOV 80 x 80 mm at LWD 20/40/60 mm |
| Power R (W) | 4.5 |
| Power G/B/W (W) | 5.9 |

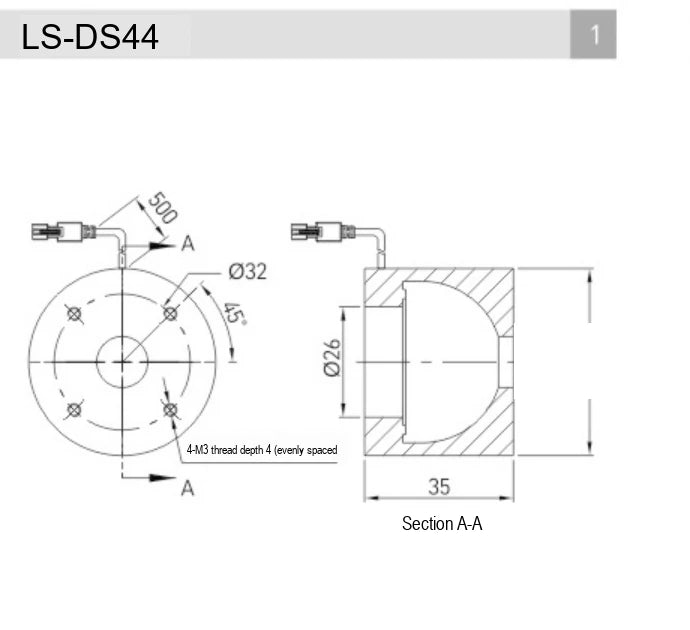

| Luminous size (mm) | 26 |
| Overall OD (mm) | 44 |
| Camera hole ID (mm) | 12 |
| Overall H (mm) | 35 |
| Recommended controller | LS-DPS, LS-APS, LS-SPS |
| Mounting | 4-M3 depth 4 (evenly spaced) on dia. 32 |
| Cable | 500 mm |
| Supply voltage (derived) | 24 V DC, derived from the 24 V output of its recommended controllers LS-DPS, LS-APS |
