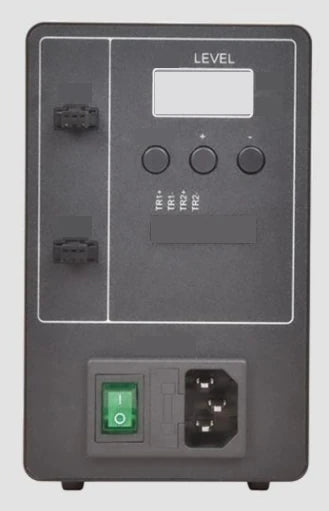

ABS digital analog controller, 2 ch, 65 W (LS-65-MI01-24015-2)
$149.00
Ir directamente a la información del producto
ABS digital analog controller, 2 ch, 65 W (LS-65-MI01-24015-2)
$149.00
Controller section 'ABS digital analog controller' of the light controller selection manual (cards P17-P18).
Features
- Built-in 24V switching power supply
- 4-digit digital display of brightness level
- Low trigger response time
- Supports external trigger mode
- Supports millisecond strobe and microsecond strobe
- Overcurrent protection
- 5~24V trigger, adaptable to high and low level trigger modes
- Small size, easy to install, screw mounting or C45 rail mounting
Specifications
| Model | LS-65-MI01-24015-2 |
|---|---|
| Output voltage | 24V |
| Number of channels | 2 |
| Built-in power supply | 65W |
| Connected light source type | 10mA~1.5A 24V power supply |
| Max input voltage | AC220V |
| Max output voltage | 24V |
| Max current per channel | 1.5A |
| Overheat protection | No |
| Short-circuit protection | No |
| Working mode | 0: normally off, 1: on, 2: millisecond strobe, 3: microsecond strobe |
| Brightness levels | 255 levels |
| Millisecond strobe time | no |
| Microsecond strobe time | no |
| Communication baud rate | no |
| Trigger mode | Level trigger |
| Operating temperature | -5~50 C |
| Luminous mode | Normally on / normally off |
| Driving mode | Constant current |

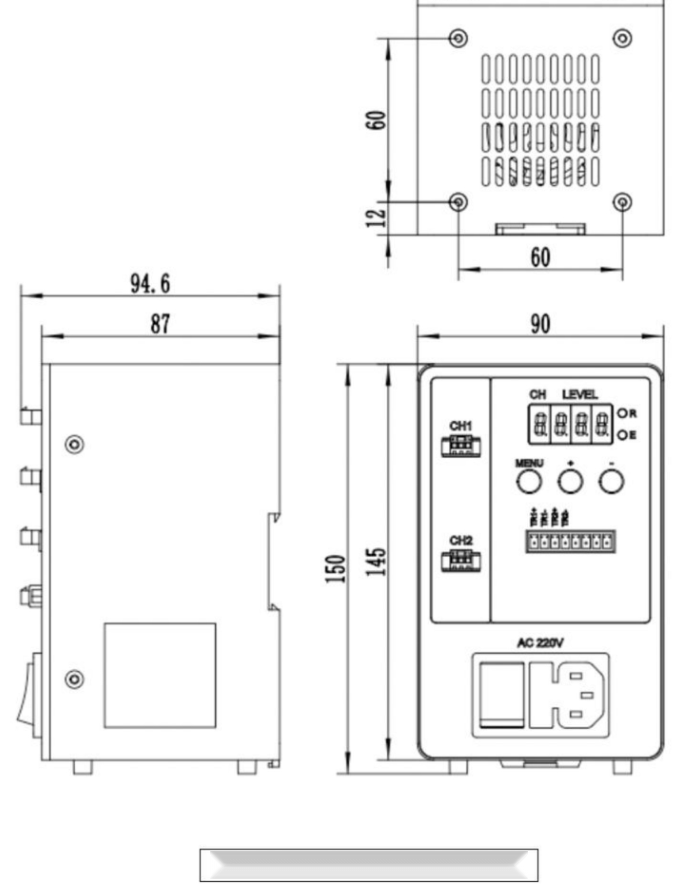

| Dimension | 90 x 94.6 x 150 mm |
| Manual page code | P17 |
| Mounting | Screw or C45 rail installation |
| Total output (W) | 65 |
| Control | Digital (display + buttons) |
