Fixed focal length, Fixed iris, 25 MP, FA lens, 25 mm (LS-XAC-25250F)
$209.00
Fixed focal length, Fixed iris, 25 MP, FA lens. Ultra-high resolution with highly consistent sharpness from center to edge 1.2" large format, fixed F4 aperture, stable construction
Features
- Ultra-high resolution with highly consistent sharpness from center to edge
- 1.2" large format, fixed F4 aperture, stable construction
- Ultra-low distortion and high relative illumination
- Excellent optical performance at all object distances
- Excellent vibration and shock resistance and stability at high and low temperatures
Specifications
| Model | LS-XAC-25250F |
|---|---|
| Focal length | 25 mm |
| F-number | F4.0 |
| Image size | Φ19.3 mm(1.2, ) |
| Distortion | -0.08% |
| Minimum object distance | 0.08 m |
| Field of view | D (19.3 mm): 41.6°; H (14.6 mm): 32.04°; V (12.63 mm): 27.88° |
| Iris control | Fixed |
| Focus control | Manual |
| Filter thread | M35.5*0.5 |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |

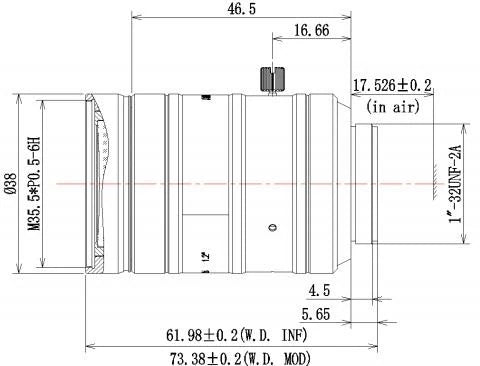

| Dimension | Φ38 × 56.33~67.73 mm |
| Weight | 151 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.31 kg |
