24 mm Spot light (LS-SP2403)
$209.00

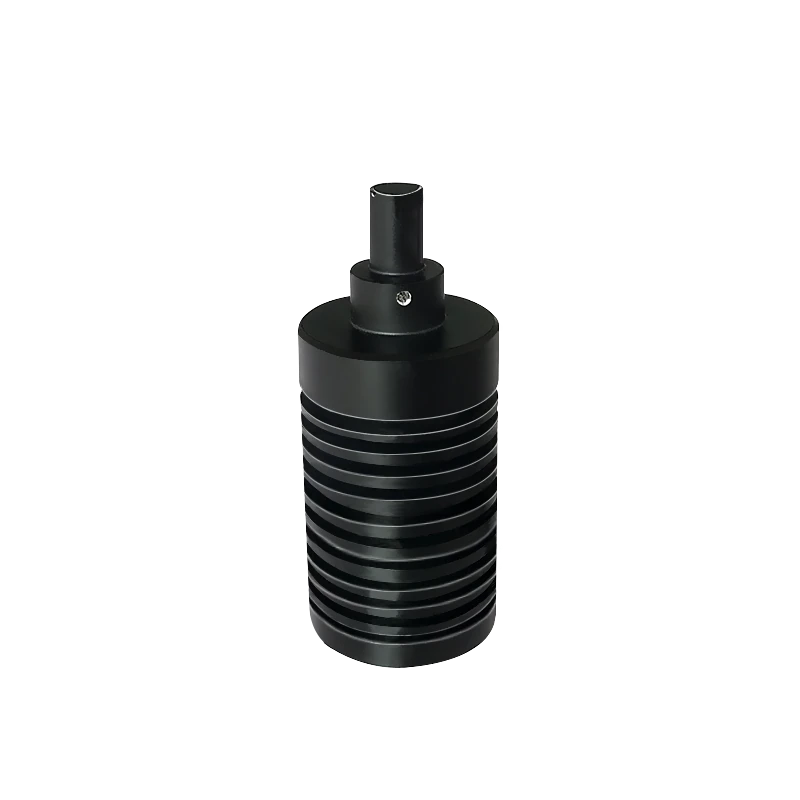

Small high-brightness point (spot) light with a finned heat sink, 3 V / 3 W, for small fields of view with high uniformity requirements; can be used with a coaxial lens.
Features
- 3 W, 3 V supply
- Finned aluminium heat sink
- Outer diameter and height, wavelength/colour temperature, mounting and input wire length customization
- Luminous outsid diameter: 24mm. Inside diameter: 22mm.
- Brightness level 255, connected to the controller can be adjusted.
- Life span:30000 hours for red light and 30000 hours for white light.
- Suitable for micro element detection, LCD panel detection and liquid crystal glass base calibration, etc.
Applications
- Micro element detection
- LCD panel detection
- Wafer, liquid crystal glass base calibration
- Chip detection, Mark point positioning
- Vision systems with small installation space
- Mobile phone circuit board Mark point to point detection (with coaxial light lens)
Specifications
| Model | LS-SP2403 |
|---|---|
| LED type | SMD |
| Power tolerance | actual product power within ±10% of the table is the normal range |
| Luminous size(mm) Outsid diameter | 24 |
| Luminous size(mm) Inside diameter | 22 |
| Category | Spot light |
| Color | red/white/blue/green |
| Wavelength | red: 620-635nm; white: —; blue: 465-470nm; green: 525-530nm |
| Color temperature | red: —; white: 6000-6500K; blue: —; green: — |
| Cable length | 1.2m |
| Terminal Plug | Flat head 3PIN2 pin |
| Connector Definition | 1:positive(+)red; 2:leave empty; 3:negative(-)black. |
| Shell material | Aluminum Alloy (Oxidative blackened surface) |
| Cooling | Naturalair cooling |
| Shell Hardness Parameters | Static load 230N±10N,time 5 minutes contact area:diameter 30MM Energy level:5J elements: steel ball diameter 50MM,500g±25g |
| Electrical insulation capacity | DC500V Insulation resistance>20 megohms |
| Pressure Resistance Requirements | AC1000 V10mA/5S |
| Flammability Rating | IEC60707 |
| Operating Temperature and Humidity | Temperature:0 to 50ºC,Humidity:20% to 85%RH(non-condensing) |
| Lifespan | Under our specified conditions of use,50000 hours for red light and 30000 hours for white light,the brightness is reduced to 50% of the factory value |
| Value-added Services | One year free technical support |
| Brightness Controller (optional) | 1.Analog Controller 2.Digital Controller |
| Mating cable (optional) | 1.Light source extension cable 2.Connector adapter cable |

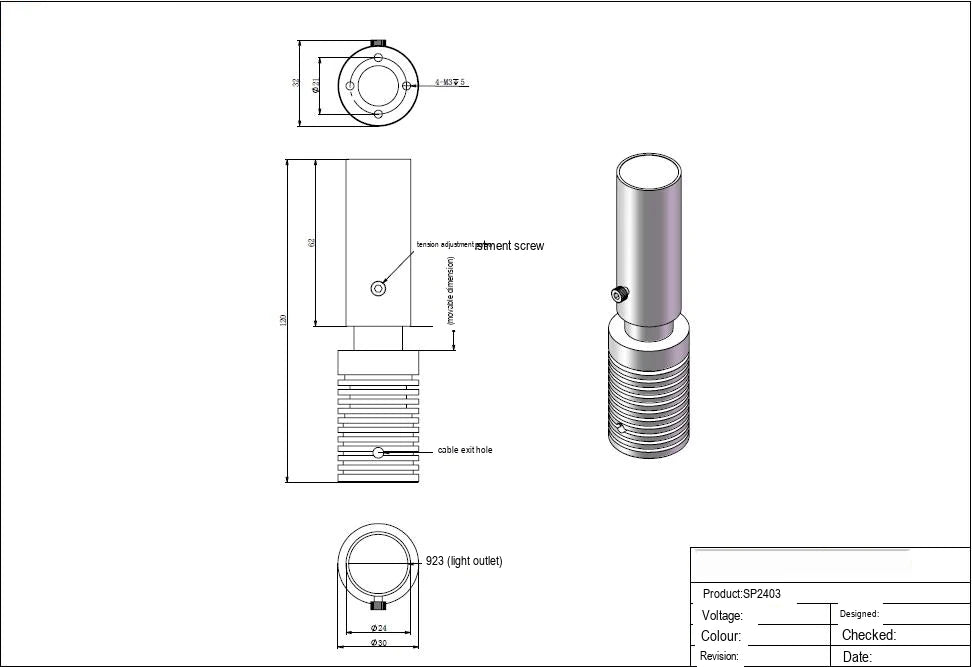

| Outside diameter of luminous area (mm) | 24 |
| Inside diameter of luminous area (mm) | 22 |
| Voltage (V) | 3 |
| Power (W) | 3 |
| Outside diameter (mm) | 30 |
| High (mm) | 120 |
