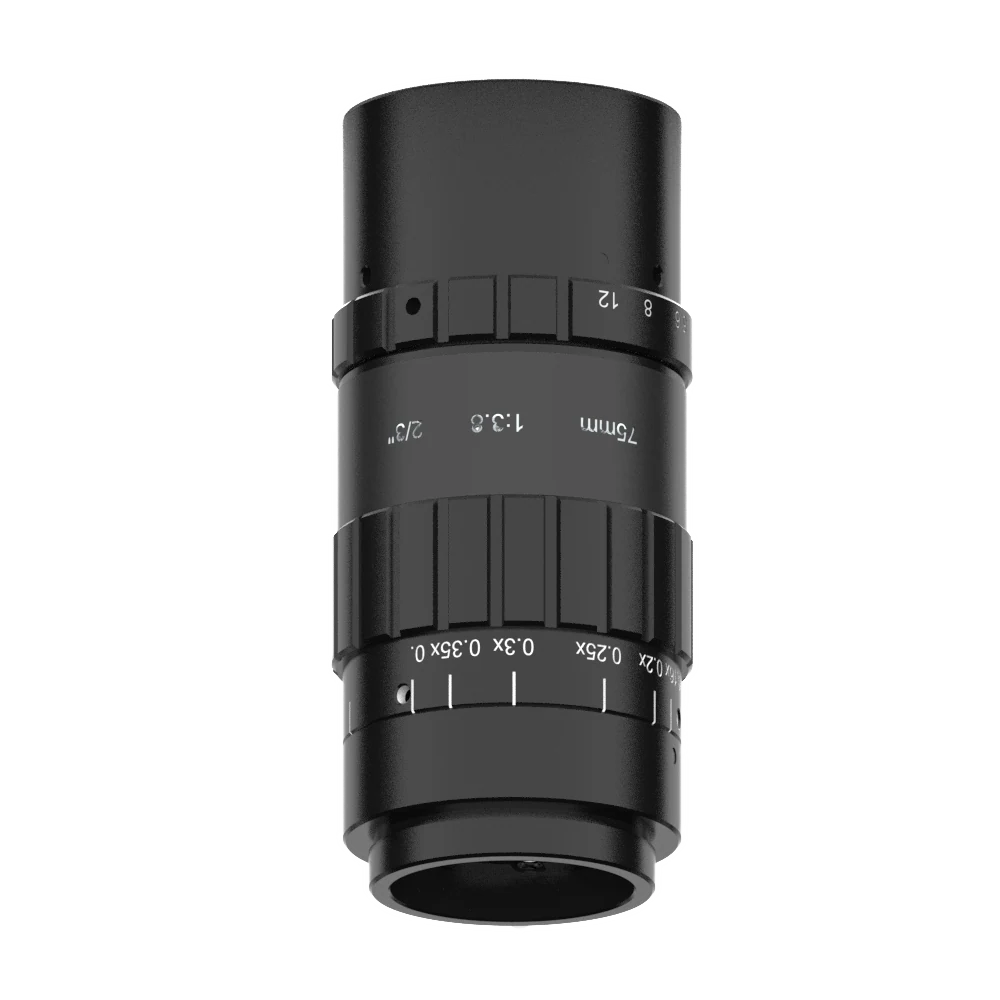

75mm, F3.8, 2/3", C-mount, Macro lens (250 mm (0.46X) to 550 mm (0.16X)) (LS-MF7538M-ML)
$389.00
75mm, F3.8, 2/3", C-mount, Macro lens (250 mm (0.46X) to 550 mm (0.16X)). High resolution with uniform image sharpness Low distortion and excellent relative illumination
Features
- High resolution with uniform image sharpness
- Low distortion and excellent relative illumination
- Excellent macro performance with strong optical performance at close range
Specifications
| Model | LS-MF7538M-ML |
|---|---|
| Focal length | 75 mm |
| F-number | F3.8 ~ F12 |
| Image size | Φ11 mm(2/3'') |
| TV distortion | 0.02% |
| Magnification range | 0.46x ~ 0.24x ~ 0.16x |
| Working distance range | 250 ~ 400 ~ 550mm |
| Field of view | D(11.01 mm):6.48°; H(8.45 mm):4.97°; V(7.07 mm):4.16° |
| Iris control | Manual |
| Focus control | Manual |
| Connector type | C-Mount |
| Flange back length | 17.526 mm |

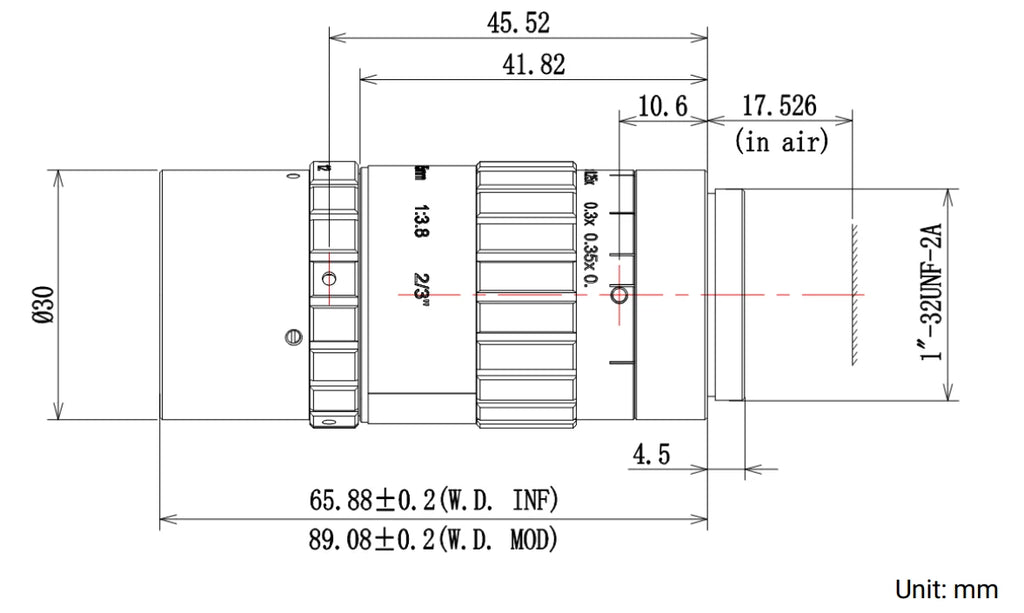

| Dimension | Φ30 × 65.88~89.08 mm |
| Weight | 115 g |
| Temperature | -10 ~ 50°C |
| Certification | RoHS2.0 |
| Shipping weight (estimated) | 0.26 kg |
