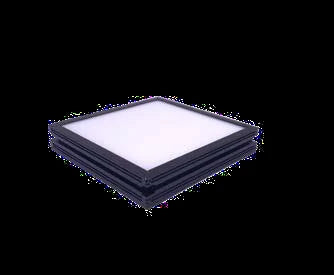

511 x 248.5 mm surface light source, no opening (LS-FL250510F)
Red
$529.00
Zu Produktinformationen springen
511 x 248.5 mm surface light source, no opening (LS-FL250510F)
$529.00
Surface light with large-area uniform light emission and high-array LED arrangement for high-brightness planar lighting. Mainly used for perspective contour imaging and large-format uniform illumination.
Features
- Large-area uniform light emission
- High-array LED arrangement for high-brightness planar lighting
- Mainly used for perspective contour imaging and large-format uniform illumination
- Size can be customized according to different needs

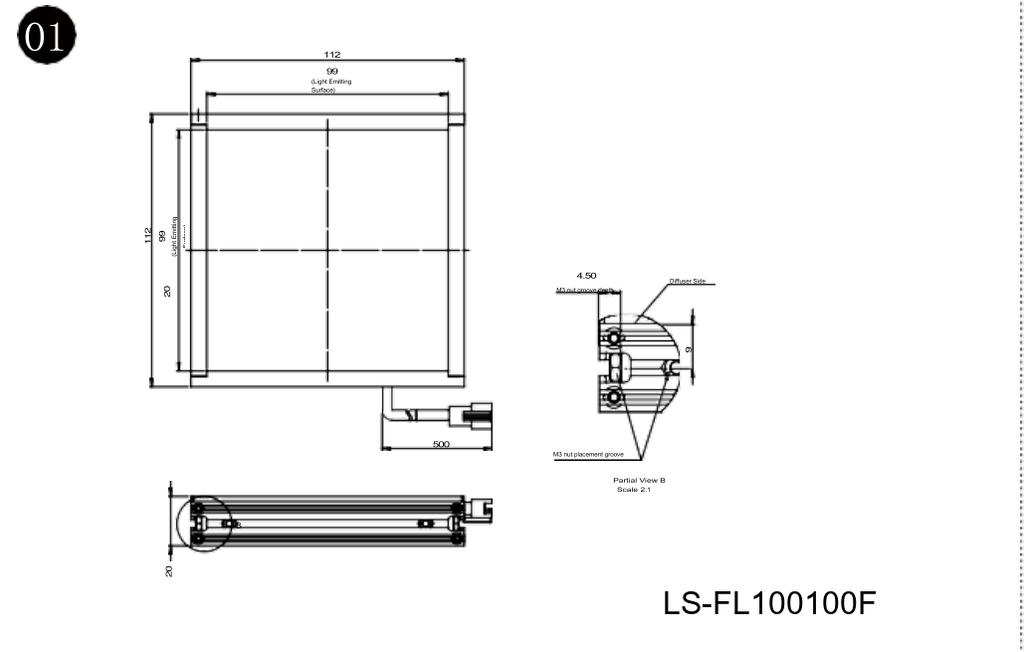

- Diffuser plate in an aluminium frame with M3 nut placement groove (groove depth 4.5 mm)
Applications
- Various size measurements, shape inspection of transparent objects
- Shape inspection of electronic components and ICs
- Edge positioning
- Copper wire detection
Specifications
| Model | LS-FL250510F |
|---|---|
| Voltage | 24 V DC (12 V on request) |
| Thickness (mm) | 20 |
| Cable length (mm) | 500 |
| Mounting | M3 nut placement groove, groove depth 4.5 mm |
| Overall length (mm) | 524 |
| Overall width (mm) | 216.5 |
| Power red (W) | 69.2 |
| Power white/blue/green (W) | 88.92 |
| Emitting surface (mm) | 511 x 248.5 |
| Overall height (mm) | 20 |
