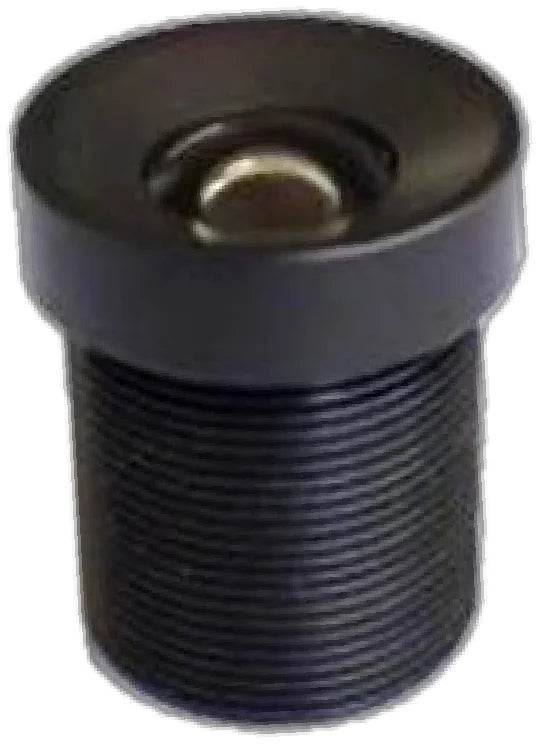

6 mm, 1/2.7", 3 MP, M12-mount M12 Board Lens (LS-SBF0622IRF-3M)
$39.00
6 mm, 1/2.7", 3 MP, M12-mount M12 Board Lens. 3 megapixel 6 mm M12 lens for 1/2.7" sensors, for recognition, scanning and surveillance. At a glance: focal length 6mm; format 1/2.7"; resolution 3 Megapixel; aperture F2.2 Fixed iris; mount M12.
Features
- 3 megapixel high definition
- 1/2.7" sensor format
- M12 mount
Applications
- Recognition
- Scanning
- Surveillance
Specifications
| Model | LS-SBF0622IRF-3M |
|---|---|
| Resolution | 3 Megapixel |
| Format | 1/2.7" |
| Focal length | 6mm |
| IR correction | IR |
| Aperture | F2.2 Fixed iris |
| Angle of view (1/2.7", DxHxV) | 63 x 50 x 36 deg |
| Angle of view (1/3", DxHxV) | 58 x 43 x 30 deg |
| M.O.D. | 0.3m |
| Distortion | -19.5% ~ -13.7% |
| Back focal length (optical) | 8.16mm |

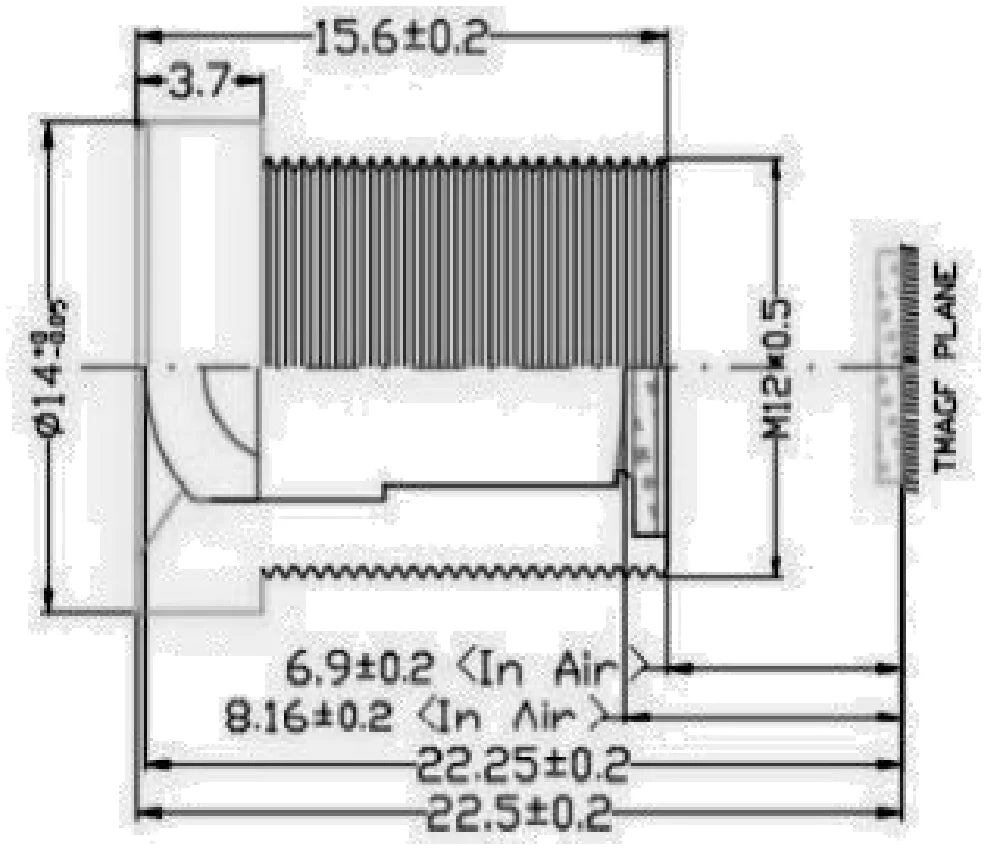

| Size | dia. 14 x 15.6mm |
| Total track length (TTL) | 22.9mm |
| Mount | M12 |
| Weight | 5g |
| Shipping weight (estimated) | 0.11 kg |
