Multi-angle ring light, Ø180 mm (LS-RNMU180)
$629.00
Přejít na informace o produktu
Multi-angle ring light, Ø180 mm (LS-RNMU180)
$629.00
It adopts high intensity and high brightness LEDs and its brightness can be controlled independently in each angle to inspect scratches, stains and other defects on glass surface accurately.
Features
- Multiple angles controlled independently, compact structure
- Can be customized for multiple independently controlled colours
- Multiple angle can be controlled independently, compact structure
- Can customized that multiple color can be controlled independently
Applications
- Glass surface scratch inspection
- Multiple characteristics under microscope inspection
- Imaging example: defect inspection on a rubber gasket (LS-RNMU225-B)
- Glass surface scratch inspection, multiple characteristics of the microscope inspection
- Seal ring surface defects inspection
Specifications
| Model | LS-RNMU180 |
|---|---|
| Voltage | 24 V |
| Adapted controller | Strobe controller, analog controller, digital controller |
| Customizable | emitting angle, outer and inner diameter, light array quantities, colour and colour temperature, multi-area control, cable length, installation method |
| Operating temperature | 0-50 °C |
| Operating humidity | 20-85% (non-condensing) |
| Lifespan | 50000 h (to 50% of factory-default luminance) |
| Extension cable options | PVC extension cable (high flexibility, bending and heat resistant, for use inside equipment) or high-flexibility extension cable (harder and more abrasion resistant than PVC, for drag-chain production lines) |
| Custom wavelengths | UV & IR light can be customized as required |
| Note | UV & IR light can be customized as required. |

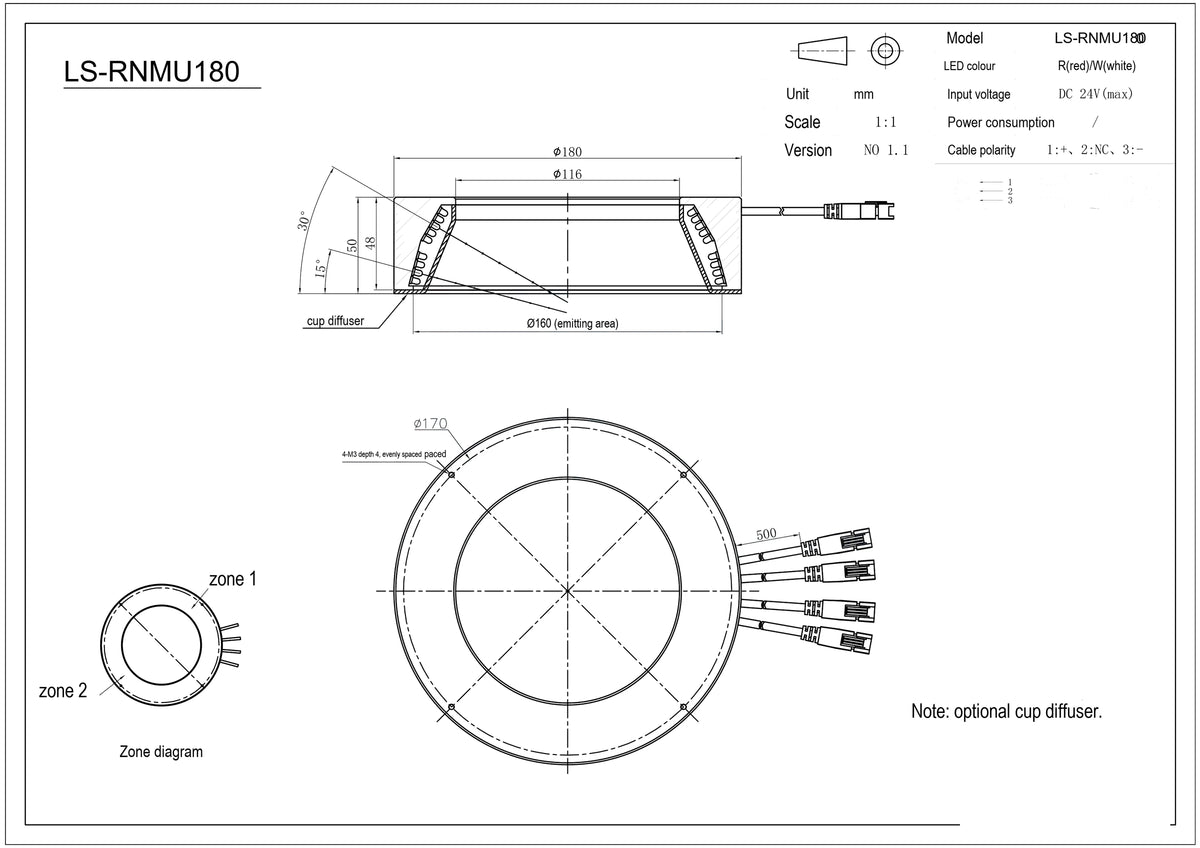

| Dimension | Out dia. 180,Inner dia. 116,Height 50mm |
| Power | 36.8W |
| LED colour | R(red)/W(white) |
| Input voltage | DC 24V (max) |
| Cable polarity | 1: +, 2: NC, 3: - |
| Mounting holes | 4-M3 depth 4, evenly spaced |
| Diffuser | Cup-shaped diffuser optional |
