Right-angle coaxial light, 64 x 40 x 40 mm (LS-3COXR30)
Red
$169.00
Přejít na informace o produktu
Right-angle coaxial light, 64 x 40 x 40 mm (LS-3COXR30)
$169.00
Compact,space saving. 90° between ray and CCD camera, compact structure.
Features
- Compact,space saving
- 90° between ray and CCD camera, compact structure
Applications
- The surface scratch of bright and clear object, food packaging
Specifications
| Model | LS-3COXR30 |
|---|---|
| Note | UV & IR light can be customized as required. |
| Voltage | 24V |
| Dimension | L64xW40xH40(mm) |
| Power | 2.9W/4.4W |
| LED colour | R(red)/W(white) |
| Input voltage | DC 24V (max) |
| Cable polarity | 1: +, 2: NC, 3: - |
| Emitting surface (mm) | 30 x 20 |
| Mounting holes | 4-M3 depth 5 |

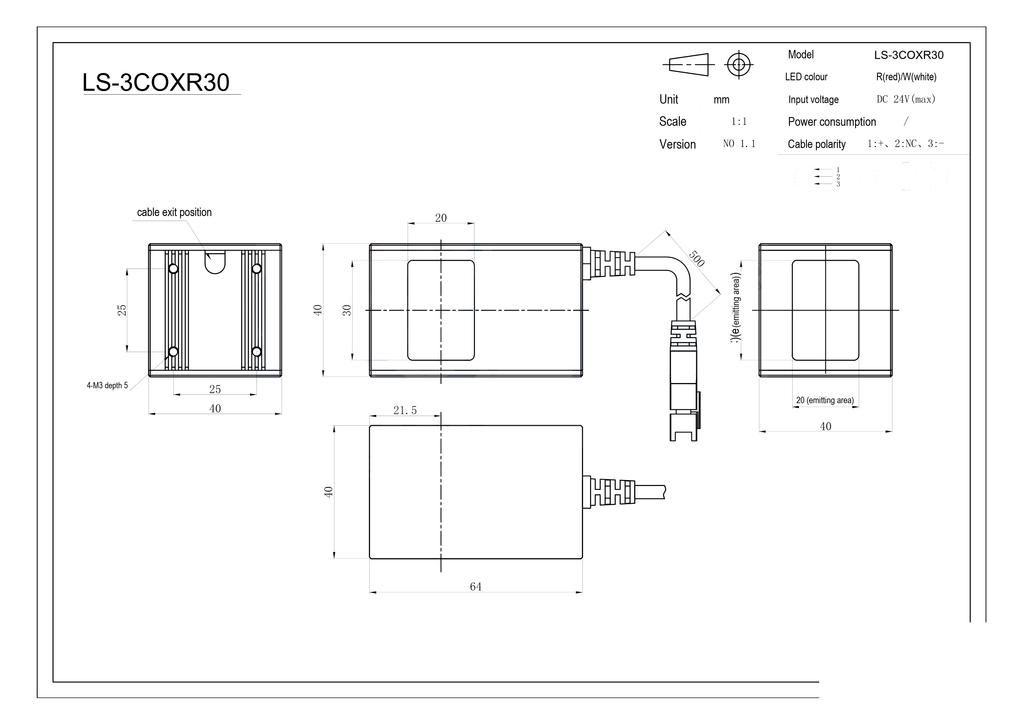

| Cable (mm) | 500 (drawing) |
